Marine Single Pedestal Warping Roller Mooring Fairlead Type A
Description
Marine Pedestal Roller Fairlead Warping Roller Type A is designed as per the standard of CB436-2000. It cast from the finest quality steel for added durability, equipped with a weld down base or socket/pedestal with optional heights and delivered with Bronze-Steel bearings or other bearings upon request. Rollers on a socket can equipped with a keeper that prevents the mooring line from dropping when tension on the line slackens.
Product Detail
Material: Cast Iron/ Cast Steel
Standard: CB*58-83, CB436-2000
Roller No.: Single Roller
Roller Diameters: 100mm~450mm
Roller Weight: 9.9kg~452kg
Base Weight: 63.9kg~445.4kg
Certificate: CCS, ABS, BV, LR, NK, RINA
Aadvantages :
Durability
Compact design,
precision machined smooth surface
easily removable shafts,
Featurers:
1.Finish: Epoxy finishing
2.Can be designed according to customers requirements.
3.Easily removable shafts.

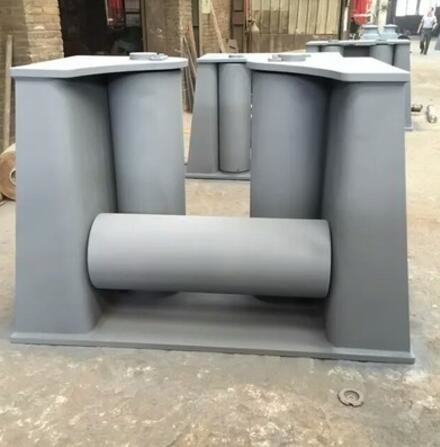

Open Type Three Roller Fairlead Certificate: ABS, BV, GL, DNV, CCS,mill certificate etc.
Specification
| DIA OF ROLLER D | APPROPRIATE CABLE DIA | SIZE | WEIGHT (kg) |
| STEEL WIRE STRENGTH | HEMP | SYNTHETIC | D1 | D4 | H | H1 | L | S | t | t1 | GUIDE ROLLER | STAND |
| ROPE | FIBER ROPE |
| 6*24 | 6*37 | | |
| 150 | 16-18 | 14-16 | 45 | 32 | 240 | 264 | 154 | 30 | 75 | 5 | 12 | 8 | 24.8 | 129 |
| 200 | 22 | 20 | 55 | 40 | 310 | 338 | 186 | 30 | 85 | 5 | 14 | 10 | 49.3 | 178 |
| 250 | 24 | 24 | 65 | 45 | 380 | 408 | 230 | 35 | 100 | 6 | 14 | 10 | 92 | 207 |
| 300 | 30 | 28 | 70 | 50 | 440 | 472 | 255 | 35 | 100 | 7 | 16 | 12 | 127 | 265 |
| 350 | 38 | 34 | 75 | 55 | 500 | 536 | 271 | 35 | 100 | 7 | 18 | 14 | 168 | 332 |
| 400 | 40-42 | 38-40 | 85 | 65 | 560 | 600 | 307 | 40 | 100 | 7 | 20 | 16 | 252.5 | 401.3 |
| 450 | 44 | 42-44 | - | 80 | 630 | 670 | 316 | 40 | 120 | 7 | 20 | 16 | 310 | 452
|
About US
Weitong Marine focus on developing and offering the most competetive marine products for worldwide clients with best service:
1. Quality Assurance & Inspection
We guarantee the quality,not just because we have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake, but also we attach much importance to customers’ satisfactory of product quality. What’s more, Mill Test Certificate can be provided for general products, and most of our products are approved by CCS, ABS, DNV, BV, NKK, KR, LR, GL, RINA etc.
2. Efficiency
Your request is promised to be reponsed within1-12 hours. Our experienced sales team get technical support from our engineer team to ensure swift offer and good communication.
3.On Time Delivery
We have rigorous production schedule and professional follow-up process to control the production time. Clients will be informed about the production process in time. Besides, we cooperate with reliable logistic partners to assure the goods to be delivered to you punctually.
4. Customization
If you need customization service, our experienced engineers are able to design the product as per your request or application.
5. Product Range
All marine equipment, accessories and technique solution can be offered.
6.After sales service
After shipping, we keep tracking the shipment, and once goods arrived, we will positively contact client for feedback.
We always insist on the values of “customer-oriented, integrity first” in global trade business. Whenever you need inquiry or help, you can always turn to Weitong Marine, we are always available to reply with answer or provide help over the phone, by email or other.
Should you have any comment or inquiry, please feel free to contact us for more details
Ms kate
Tel: +86-756-8169003
Phone: +86-13923317268
Website: www.weitongmarine.com
sales@weitongmarine.com

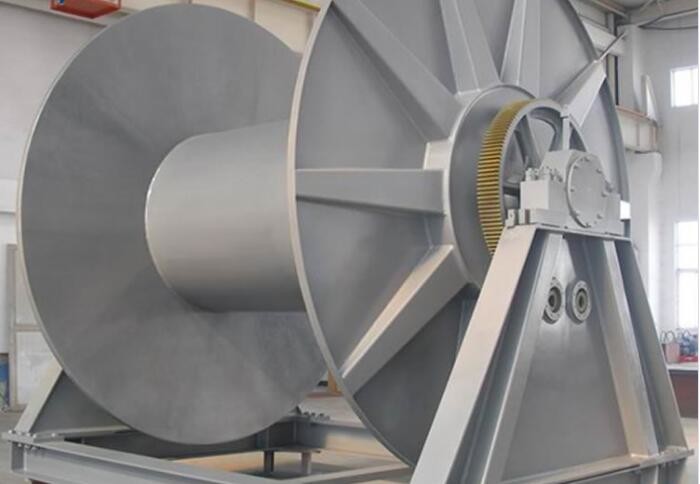

Ohter Product Photos
