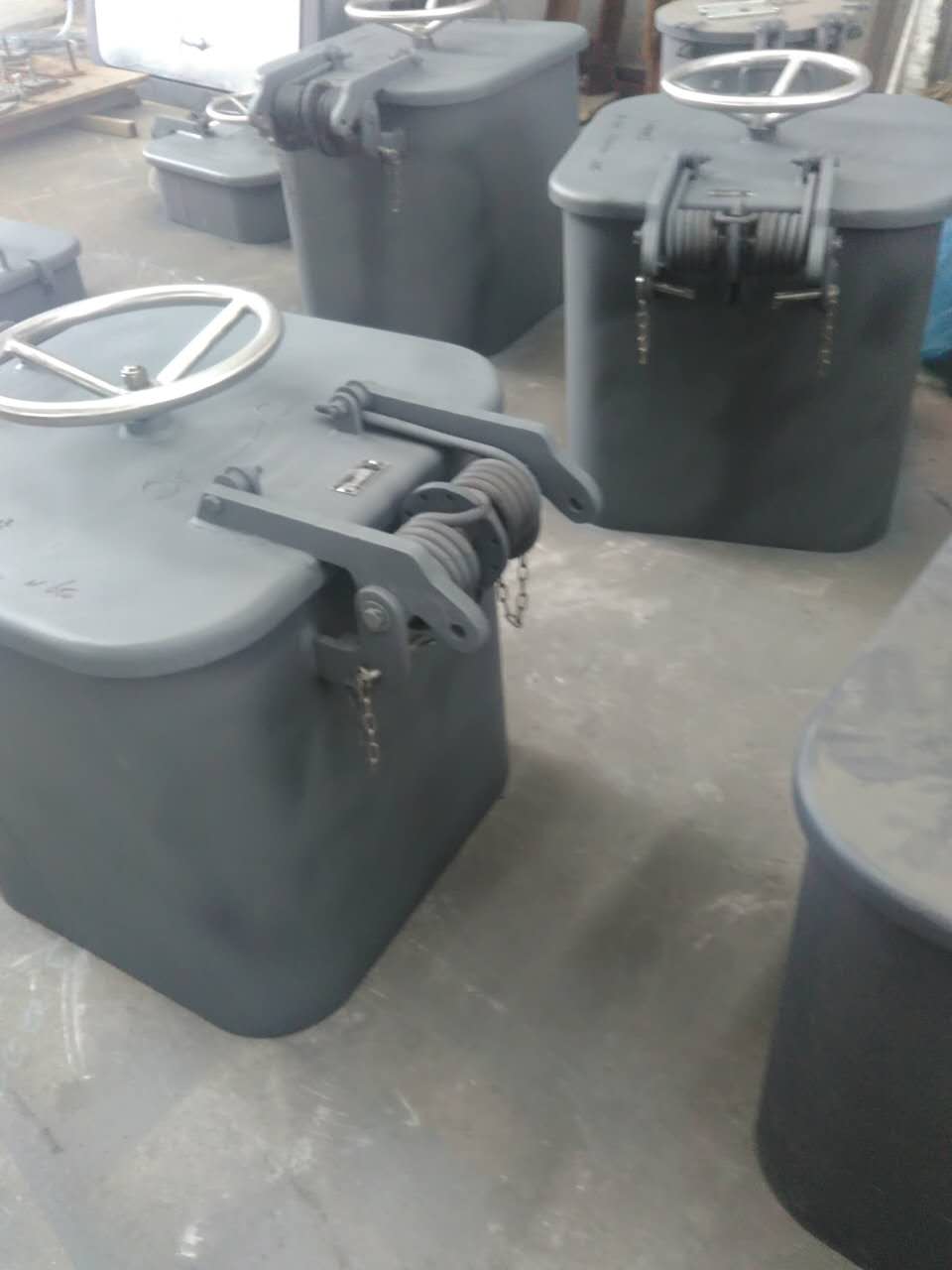

Marine Hatch Covers , Ship Steel Rotating Oiltight Watertight Hatch Cover
Rotating Oil Tight Hatch Cover is suitable for applications cargo tank passageway onboard oil tanker. Two types for option:Round type A and Oval Type B

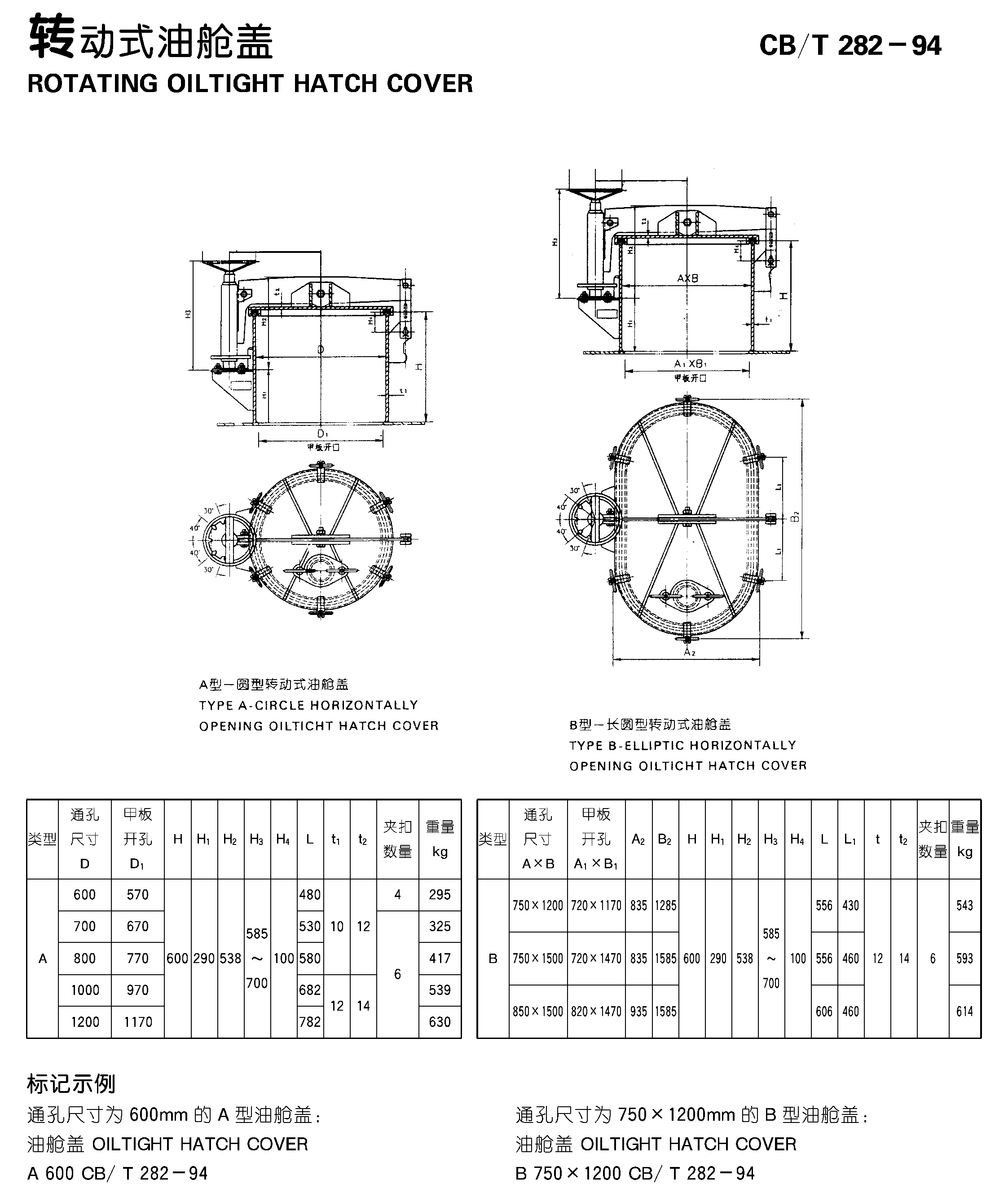

meet the standard of CB/T282-94
Specification
| Type | Clear Size D | Deck Opening Size D1 | H | H1 | H2 | H3 | H4 | L | t1 | t2 | Clip Quantity | Weight | | |
| (kgs) | | |
| A | 600 | 570 | 600 | 290 | 538 | 585--700 | 100 | 480 | 10 | 12 | 4 | 295 | | |
| 700 | 670 | 530 | 6 | 325 | | |
| 800 | 770 | 580 | 417 | | |
| 1000 | 970 | 682 | 12 | 14 | 539 | | |
| 1200 | 170 | 782 | 630 | | |
| Type | Clear Size AxB | Deck Opening Size A1xB1 | A2 | B2 | H1 | H2 | H3 | H4 | L | L1 | t1 | t2 | Clip Quantity | Weight(kgs) |
| B | 700x1200 | 720x1170 | 835 | 1285 | 290 | 538 | 585--700 | 100 | 556 | 430 | 12 | 14 | 6 | 543 |
| 750x1500 | 720x1470 | 835 | 1585 | 556 | 460 | 593 |
| 850x1500 | 820x1470 | 935 | 1585 | 606 | 460 | 614 |
We offers two types of marine covers: hatch cover and manhole cover
** Hatch Cover:
Steel Small Size Hatch Cover
Rotating Oil Tight Hatch Cover
Steel Weathertight Hatch Cover
Aluminum Weathertight Hatch Cover
Steel Watertight Hatch Cover
Aluminum Watertight Hatch Cover
Pressure Proof Manhole Cover & Hatch Cover
Quick Acting Watertight Hatch Cover
Hatch Cover for Suez Canal Light
Air Hatch Cover
Fireproof Hatch Cover
** Manhole Cove:
Type A Manhole Cover with Coaming--nominal size:600*400, cover plate thichness10 , CB/T19-2001
Typ B1 Flat Type Manhole Cover---- nominal size:600*400, cover plate thichness10 , CB/T19-2001
model C1 Embedded Type Manhole Cover with Shield--- nominal size:600*400, cover plate thichness12 , CB/T19-2001
Model D1 Long Circular Sunk Type Manhole Cover with shield---nominal size:600*400, cover plate thichness14 , CB/T19-2001
Model A Stud Mounted Manhole Cover, Model A Ballast liquid tank manhole cover with check hole wihc size 600*400 6CB/T3981-2008
About US
Weitong Marine focus on developing and offering the most competetive marine products for worldwide clients with best service:
1. Quality Assurance & Inspection
We guarantee the quality,not just because we have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake, but also we attach much importance to customers’ satisfactory of product quality. What’s more, Mill Test Certificate can be provided for general products, and most of our products are approved by CCS, ABS, DNV, BV, NKK, KR, LR, GL, RINA etc.
2. Efficiency
Your request is promised to be reponsed within1-12 hours. Our experienced sales team get technical support from our engineer team to ensure swift offer and good communication.
3. On Time Delivery
We have rigorous production schedule and professional follow-up process to control the production time. Clients will be informed about the production process in time. Besides, we cooperate with reliable logistic partners to assure the goods to be delivered to you punctually.
4. Customization
If you need customization service, our experienced engineers are able to design the product as per your request or application.
5. Product Range
All marine equipment, accessories and technique solution can be offered.
6. After sales service
After shipping, we keep tracking the shipment, and once goods arrived, we will positively contact client for feedback.
We always insist on the values of “customer-oriented, always with integrity” in global trading business. Whenever you need inquiry or help, you can turn to Weitong Marine over the phone, by email or other.
Should you have any comment or inquiry, please feel free to contact us for more details
kate Yang
Tel: +86-756-8169003
Phone: +86-13923317268
sales@weitongmarine.com
Skype: katelp65
Ohter Product Photos
Product Tags:
|
|
Roting Oiltight Marine Hatch Cover 0.2MPa Use Pressure CB/T282-94 Standard Images
|
